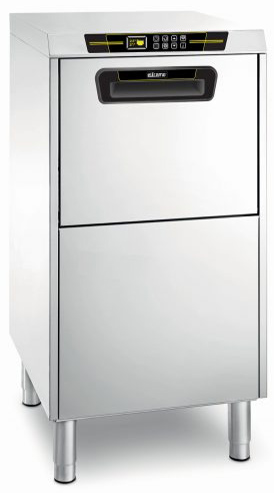

D85-VE

• Double skinned body and full stainless steel AISI 304 door
• Moulded tank
• Standard heat insulation
• LED display with user-friendly symbols
• 4 washing cycles with programmable times and temperatures
• Washing options: cold water rinse, sanitization, ECO function
• Operational information: tank signalling (empty, full, filling), boiler and tank temperature,
selected program, operational program status
• Stainless steel rotating washing and rinsing arms
• Tank and boiler heating elements in Incoloy 800
• Boiler holding device
• Wash pump with SOFT-START function to prevent light and delicate dishes overturning when
the washing cycle is started
• Possibility to set the rinsing temperature below 65°C, to avoid delicate glassware breaking and
to preserve their brightness
• Guaranteed sanitation by the BOILER holding DEVICE for rinse temperature 85°C
• Machine self-cleaning program at the end of the working day (On request)
• Double filters in tank
• Manual removal of all components of the tank, without tools using

D 85 VE D 85 VE BA
Net/gross weight kg 92/98
Basket sizes mm 500 x 500
Cycle lengths sec 60/120/180 + 10″
Production (p/h) 1320/660/440
Basket capacity Ø24 cm dish 22
Tray capacity (GN 1/1 h=20 mm) 11
Std input voltage (60Hz optional) V 400V~N/50/3
Which may be transformed into V 230V/50/3
Max absorbed power kW 7.1 6.2
Power of wash pump kW 1
Power of boiler/tank heating elements kW 6.1 / 3 5.2 / 3
Capacity of boiler/tank lt 8 / 30 6 / 30
Rinse water consumption (2 bar) lt 3
Water feed °C 50…60 55…60
Standard supplied coated baskets 2
Detergent pump Equipment Equipment
Rinse aid pump Equipment Equipment
Drain pump On request On request
Rinsing pressure booster pump On request Equipment
Integrated water softener On request
