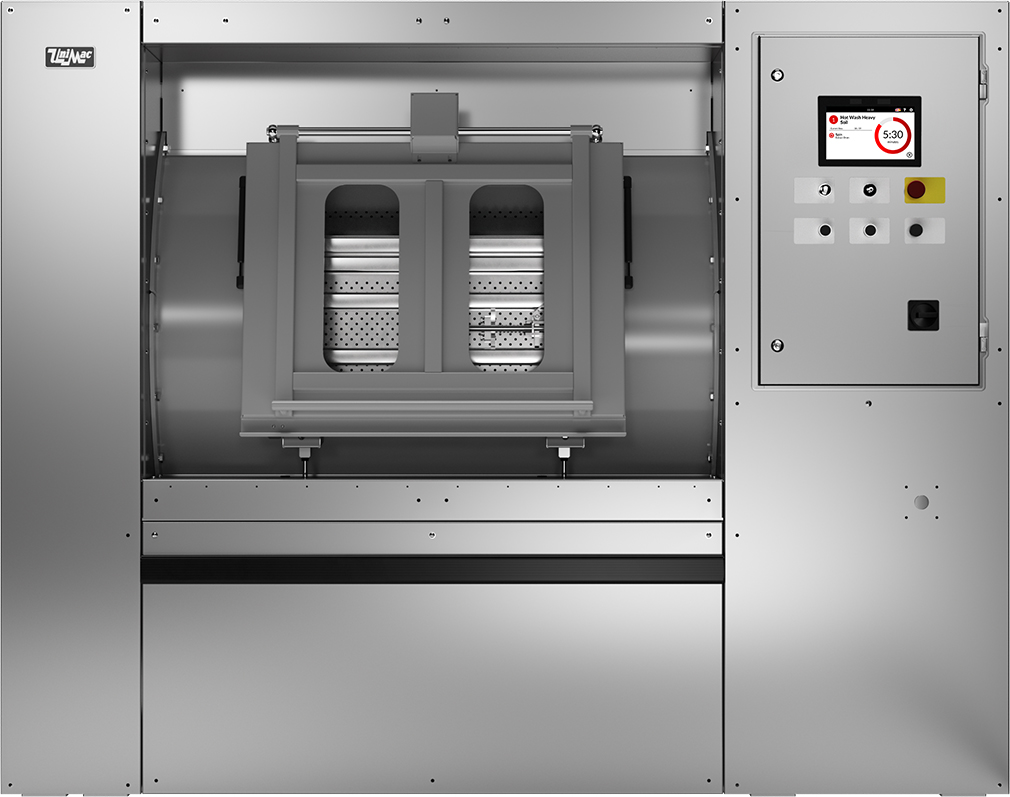

Barriere vaskemaskin 90 - 180kg

Barriere vaskemaskin 90 – 180kg

• Freestanding, high spin
• Stainless steel cabinet
• Stainless steel drum and tub
• MICRO – new graphic display with almost unlimited
possibilities as:
– Communication interface enabling remote service
– Multilingual microprocessor
– Freely programmable
• Oversized frame, bearings and drum
• Large door opening (765×340 mm) for easy loading and
unloading
• Large drain valve (Ø 126 mm)
• Easy access to all parts
• Frequency controlled motor
• Perforated chamber walls: more mechanical action,
lower water consumption
• Standard Y–pocket (3 pockets) drum on UB1100, 1400,
1800
• Standard Pullmann (2 pockets) drum on UB900
• Ecological washing programmes – significantly reduces
water and electricity consumption
• Patented soap dispenser with 5 removable
compartments (UB 1800 – 10 compartments)
• Air operated water inlets

Legg til tilbudforespørsel
TYPE UB900 UB1100 UB1400 UB1800
INNERDRUM
Capacity kg/lb 90/198 110/242 140/308 180/396
Volume l 900 1100 1400 1800
Diameter Ø mm 1000 1100 1200 1300
POCKETS
Frequency controlled Standard 2
Optional 3		 Standard 3
Optional 2		 Standard 3
Optional 2		 Standard 3
MOTOR
Frequency controlled Standard Standard Standard Standard
DRUM SPEED
Wash rpm 36 35 33 36
Extraction rpm 800 754 720 695
G-Factor 360 350 350 350
PROGRAMMER
MICRO Standard Standard Standard Standard
CABINET
Stainless steel Standard Standard Standard Standard
DRUM
Stainless steel Standard Standard Standard Standard
HEATING
Electrical kW 54 72 72/96 –
Steam bar 6-8 6-8 6-8 6-8
CONNECTION
Electrical 3×380-480V 50/60Hz
3×200-240V 50/60Hz		 3×380-480V 50/60Hz
3×200-240V 50/60Hz		 3×380-480V 50/60Hz
3×200-240V 50/60Hz		 3×380-480V 50/60Hz
3×200-240V 50/60Hz
Water inlet inch 3×1.5″ + 1×3/4″ 3×1.5″ + 1×3/4″ 3×1.5″ + 1×3/4″ 3×1.5″ + 1×1″
Steam inlet inch 1″ 1″ 1″ 1″
Compressed air inlet Ø mm 10 10 10 10
Drain Ø mm 126 126 126 126
DIMENSIONS
HxWxD mm 1830x2275x1605 1880x2325x1605 2100x2425x1805 2195x2585x1905
TRANSPORT DATA
Gross weight – case packaging kg 2970 3150 3760 5310
Net weight kg 2810 2990 3550 4990
Volume (packed) m³ 8.1 8.7 10.8 12.3
Case packing HxWxD mm 1985x2355x1740 2080x2400x1740 2250x2485x1940 2265x2665x2040

• Liquid soap pumps
• Drum with 2 pockets on UB1100, 1400, with 3 pockets on
UB900
• PROform assist traceability software and networking
system
• Tap to take water samples
• Light and sound signalization of end of washer cycle
• Linen weighing and water consumption optimization
system
• Second display
• Self lubrication of bearing’s oil seal
• Second drain valve (Ø 126 mm)
• Second drain valve for water recycling (Ø 76 mm)
